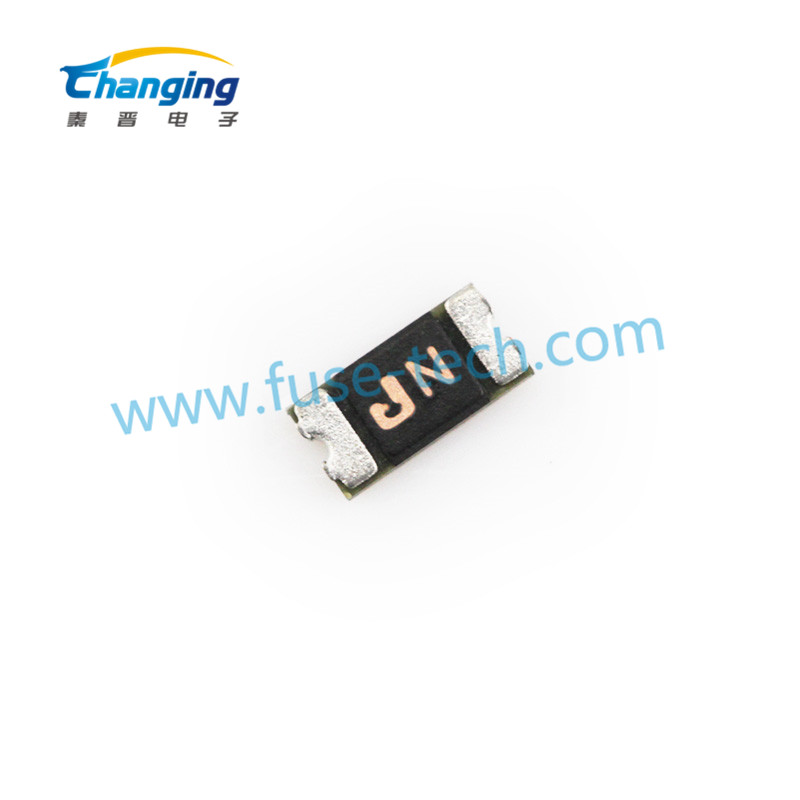

ASMD1206-010-24V
集電通ASMD1206-010-24V 貼片型、無鉛、卷盤式包裝自恢復(fù)保險(xiǎn)絲，應(yīng)用于高密度線路板，工作電流：0 05-2 0A 工作電壓：6-60V 工作溫度：-40~+85℃。
| 型號 | Ihold@25℃(A) | Itrip@25℃(A) | Vmax(V) | Imax(A) | Pdtyp.(W) | Trip current(A) | Trip time(S) | Rimin(Ω) | R1max(Ω) | Data Sheet |
|---|---|---|---|---|---|---|---|---|---|---|
| ASMD1206-350 | 3.50 | 7.00 | 6.0 | 100 | 1.2 | 10.0 | 5.00 | 0.005 | 0.04 |
 |
| ASMD1206-300 | 3.00 | 6.00 | 6.0 | 100 | 1.0 | 8.00 | 4.00 | 0.010 | 0.05 |
|
| ASMD1206-260 | 2.60 | 5.20 | 6.0 | 100 | 0.8 | 8.00 | 2.00 | 0.010 | 0.06 |
|
| ASMD1206-200-12V | 2.00 | 3.50 | 12.0 | 100 | 0.8 | 8.00 | 1.50 | 0.015 | 0.08 |
|
| ASMD1206-200 | 2.00 | 3.50 | 6.0 | 100 | 0.8 | 8.00 | 1.50 | 0.015 | 0.08 |
|
| ASMD1206-150-13.2V | 1.50 | 3.00 | 13.2 | 100 | 0.8 | 8.00 | 0.30 | 0.025 | 0.13 |
|
| ASMD1206-150 | 1.50 | 3.00 | 6.0 | 100 | 0.8 | 8.00 | 0.30 | 0.025 | 0.13 |
|
| ASMD1206-110-24V | 1.10 | 2.20 | 24.0 | 100 | 0.6 | 8.00 | 0.30 | 0.025 | 0.13 |
|
| ASMD1206-110-16V | 1.10 | 2.20 | 16.0 | 100 | 0.6 | 8.00 | 0.30 | 0.040 | 0.25 |
|
| ASMD1206-110 | 1.10 | 2.20 | 6.0 | 100 | 0.6 | 8.00 | 0.30 | 0.040 | 0.25 |
|
| ASMD1206-100-24V | 1.00 | 1.80 | 24.0 | 100 | 0.6 | 8.00 | 0.30 | 0.050 | 0.27 |
|
| ASMD1206-100-16V | 1.00 | 1.80 | 16.0 | 100 | 0.6 | 8.00 | 0.30 | 0.050 | 0.27 |
|
| ASMD1206-100 | 1.00 | 1.80 | 6.0 | 100 | 0.6 | 8.00 | 0.30 | 0.055 | 0.27 |
|
| ASMD1206-075-30V | 0.75 | 1.50 | 30.0 | 100 | 0.6 | 8.00 | 0.20 | 0.090 | 0.50 |
|
| ASMD1206-075-16V | 0.75 | 1.50 | 16.0 | 100 | 0.6 | 8.00 | 0.20 | 0.090 | 0.50 |
|
| ASMD1206-075 | 0.75 | 1.50 | 6.0 | 100 | 0.6 | 8.00 | 0.20 | 0.090 | 0.50 |
|
| ASMD1206-050-30V | 0.50 | 1.00 | 30.0 | 100 | 0.6 | 8.00 | 0.10 | 0.150 | 0.70 |
|
| ASMD1206-050-16V | 0.50 | 1.00 | 16.0 | 100 | 0.6 | 8.00 | 0.10 | 0.150 | 0.70 |
|
| ASMD1206-050/13.2 | 0.50 | 1.00 | 13.2 | 100 | 0.6 | 8.00 | 0.10 | 0.150 | 0.70 |
|
| ASMD1206-050 | 0.50 | 1.00 | 6.0 | 100 | 0.6 | 8.00 | 0.10 | 0.150 | 0.70 |
|
| ASMD1206-035-30V | 0.35 | 0.75 | 30.0 | 100 | 0.6 | 8.00 | 0.10 | 0.250 | 1.30 |
|
| ASMD1206-035-16V | 0.35 | 0.75 | 16.0 | 100 | 0.6 | 8.00 | 0.10 | 0.250 | 1.50 |
|
| ASMD1206-035 | 0.35 | 0.75 | 6.0 | 100 | 0.6 | 8.00 | 0.10 | 0.250 | 1.30 |
|
| ASMD1206-025-48V | 0.25 | 0.50 | 48.0 | 100 | 0.6 | 8.00 | 0.08 | 0.350 | 2.50 |
|
| ASMD1206-025-30V | 0.25 | 0.50 | 30.0 | 100 | 0.6 | 8.00 | 0.08 | 0.350 | 2.50 |
|
| ASMD1206-025-24V | 0.25 | 0.50 | 24.0 | 100 | 0.6 | 8.00 | 0.08 | 0.350 | 2.50 |
|
| ASMD1206-025 | 0.25 | 0.50 | 16.0 | 100 | 0.6 | 8.00 | 0.08 | 0.350 | 2.70 |
|
| ASMD1206-020-48V | 0.20 | 0.46 | 48.0 | 100 | 0.6 | 8.00 | 0.08 | 0.350 | 2.70 |
|
| ASMD1206-020-30V | 0.20 | 0.46 | 30.0 | 100 | 0.6 | 8.00 | 0.08 | 0.350 | 3.50 |
|
| ASMD1206-020 | 0.20 | 0.46 | 24.0 | 100 | 0.6 | 8.00 | 0.08 | 0.350 | 2.70 |
|
| ASMD1206-016-33V | 0.16 | 0.37 | 33.0 | 100 | 0.4 | 1.00 | 0.30 | 1.000 | 6.00 |
|
| ASMD1206-016-24V | 0.16 | 0.37 | 24.0 | 100 | 0.4 | 1.00 | 0.30 | 1.000 | 6.00 |
|
| ASMD1206-016 | 0.16 | 0.37 | 16.0 | 100 | 0.4 | 1.00 | 0.30 | 1.000 | 6.00 |
|
| ASMD1206-012-24V | 0.12 | 0.29 | 24.0 | 100 | 0.4 | 0.50 | 1.00 | 1.600 | 13.0 |
|
| ASMD1206-012 | 0.12 | 0.29 | 60.00 | 100 | 0.4 | 0.50 | 1.00 | 1.600 | 15.0 |
|
| ASMD1206-010-24V | 0.10 | 0.25 | 24.0 | 100 | 0.4 | 0.50 | 1.00 | 1.600 | 15.0 |
|
| ASMD1206-010 | 0.10 | 0.25 | 60.0 | 100 | 0.4 | 0.50 | 1.00 | 1.600 | 15.0 |
|
| ASMS1206-005-24V | 0.05 | 0.15 | 24.0 | 100 | 0.4 | 0.25 | 1.50 | 3.600 | 50.0 |
|
| ASMD1206-005 | 0.05 | 0.15 | 60.0 | 100 | 0.4 | 0.25 | 1.50 | 3.600 | 50.0 |
|
